ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm

Name: ASTM D5362 Textile Testing Equipment Fabric Bean Bag Snagging Resistance Tester 215mmx115mm
Brand: YUYANG
Price: 1 USD

Buy cheap ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm product

Brand Name : YUYANG

Model Number : YY004

Certification : ASTM D5362, JIS L1058,M&S P21A

Place of Origin : China

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15 sets per month

Delivery Time : 3-5 work days

Packaging Details : Plywood Case

Size of cylinder : Dia. 200mm, depth. 145mm

Pinned bars : 8 PCS / Cylinder

Needles : 9 PCS / Pinned bar

Bean bag weight : 450±10g/pcs

Power : 1∮ AC 220V 50Hz 3A

Accessories : specimen plate 115x215mmx21 pcs, Bean bag 2p

Contact Now

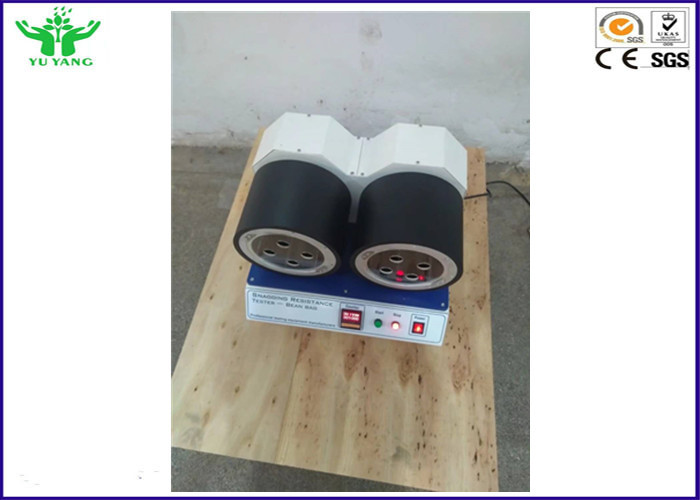

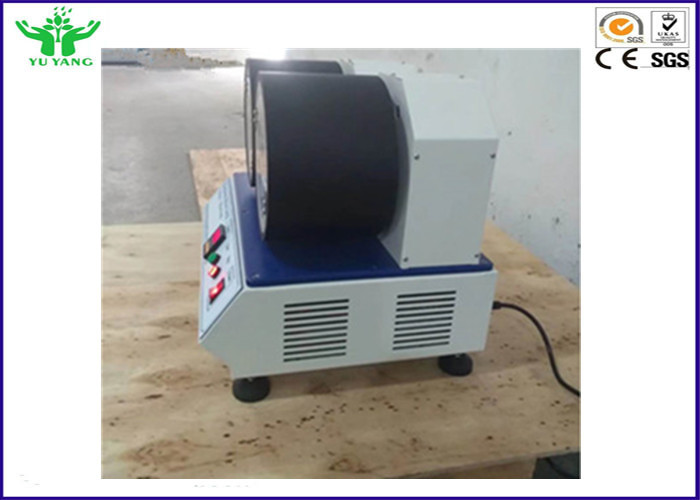

Fabric Bean Bag Snagging Resistance Tester

ASTM D5362 Fabric Bean Bag Snagging Resistance Tester 215mmx115mm

Application:

To determine the snagging resistance of knitted and woven fabrics

Principle:

Put a bead occipital in a knitted sample, and then the knitted fabric samples with beads pillow put up a wall with a certain number of turns of rows and rows of needle rollers rotating, the sample after the test is completed assessment hook wiregrade

Parameter:

Rotation speed:	20±3 r/min
Size of cylinder:	Dia. 200mm, depth. 145mm
Pinned bars:	8 PCS / Cylinder
Needles:	9 PCS / Pinned bar
Bean bag weight:	450±10g/pcs
Power:	1∮ AC 220V 50Hz 3A
Weight:	about 38 Kg
Dimensions:	470x380x380mm(L×W×H)
Standard: ASTM D5362,JIS L1058, M&S P21A	ASTM D5362,JIS L1058, M&S P21A
Accessories:	specimen plate 115x215mmx21 pcs, Bean bag 2p
Optional purchase consumables:	scale, cabinet for scale

Standard:

ASTM D 5362,JIS L 1058,M&S P21A
